E Ink Screen ISO7816 NFC Credit Card 13 Bits Keys Wireless Charging
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | HY |
| Certification: | RoHS authentication/CB authentication |
| Model Number: | A063 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Single transparent bag, outer carton |
| Delivery Time: | 10-15 working days |
| Payment Terms: | T/T |
| Supply Ability: | 20000PCS |
|
Detail Information |
|||
| Number Of Keys: | 5-13 Bits | Write: | Optical Erasable Life Of Over 1 Million Times |
|---|---|---|---|
| Type: | Active / Passive | Product Type: | ISO7816 |
| Encapsulation Material: | PVC ABS ( Optional Option ) | Visual Screen: | Glass / OLED Screen |
| High Light: | ISO7816 NFC Credit Card,RoHs NFC Credit Card,RoHs 7816 card |
||
Product Description

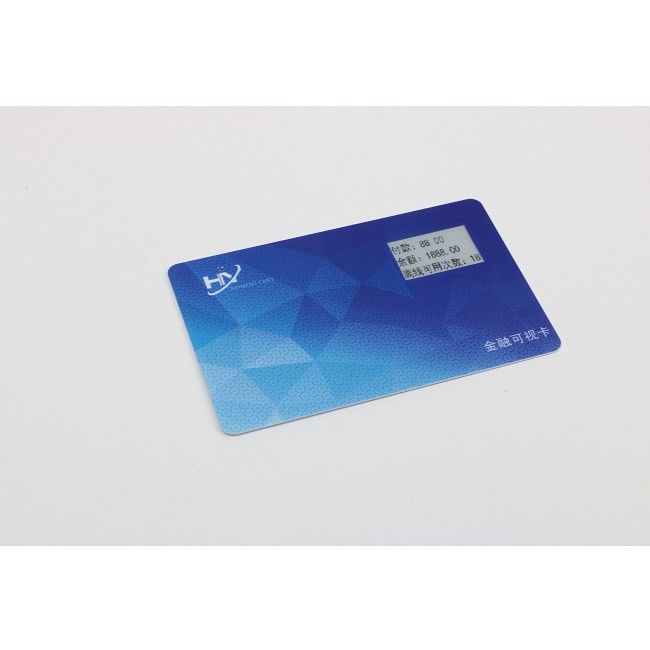

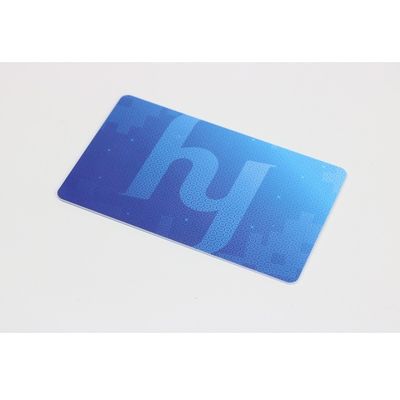

E Ink Smart Card: E Ink Screen ISO7816 NFC Credit Card 13 Bits Keys Wireless Charging
Ink screen smart card with NFC function easy to carry
E Ink Smart Card Introduction:
E Ink smart card from Heyang technology, designer provides professional PCBA design services to create your exclusive E Ink smart cards. Designers designed to make process volume according to customer needs. With independently developed glue and cold press technology, the card thickness is customized at 0.84-3.0mm, realize the ink screen information display, fingerprint operation and multi-bit password button operation function, the product can use low-power built-in lithium battery solution to achieve solar energy charge, wireless charging or magnetic charging.
|
E Ink Smart Card Parameters |
E Ink Smart Card Type | Active / passive |
| Screen | Electronic Paper / Glass / OLED screen | |
| Screen size | 1.02 inch / 1.54 inch Section screen / dot screen | |
| Appearance color | Customizable layout | |
| Thumbprint module | IDEX/FPC | |
| Beacon tips | Led prompt light [red, green] | |
| Interface | M7816 interface (optional) | |
| RFID | 13.56mhz | |
| NFC | Optional | |
| Bluetooth | Optional | |
| Waterproof grade | IP68 industrial waterproof | |
| Encapsulation material | PVC ( Optional option ) | |
| Number of keys | 5 bits / 13 bits | |
| Ultra thin lithium battery | >80mah (as required) | |
| Charging mode | Magnetic suction / wireless charging / solar charging |
E Ink Smart Card's Technical Process Description:
Heyang Technology adopts autonomous invention patent technology, developing a PCBA integrated package process, successfully realizing ultra-thin lithium battery, chip, solar panel, fingerprint module, ink screen, etc., is encapsulated at room temperature, high performance, high Reliability, appearance, bending test, high-end smart card, current, available, 20000-30000PCS.
E Ink Smart Card Application:
Widely used in prison management systems, security systems, financial systems, personnel positioning systems, new generation campus card systems, urban traffic cards and other occasions.
Operational concept:
Integrity-based, quality is the first, customer first, join hands with win-win.
Providing quality products is the best way to return customers.
